SVS Series Ship Transportation Trolley

Hydraulic Transportation Car for Ship Lifting System

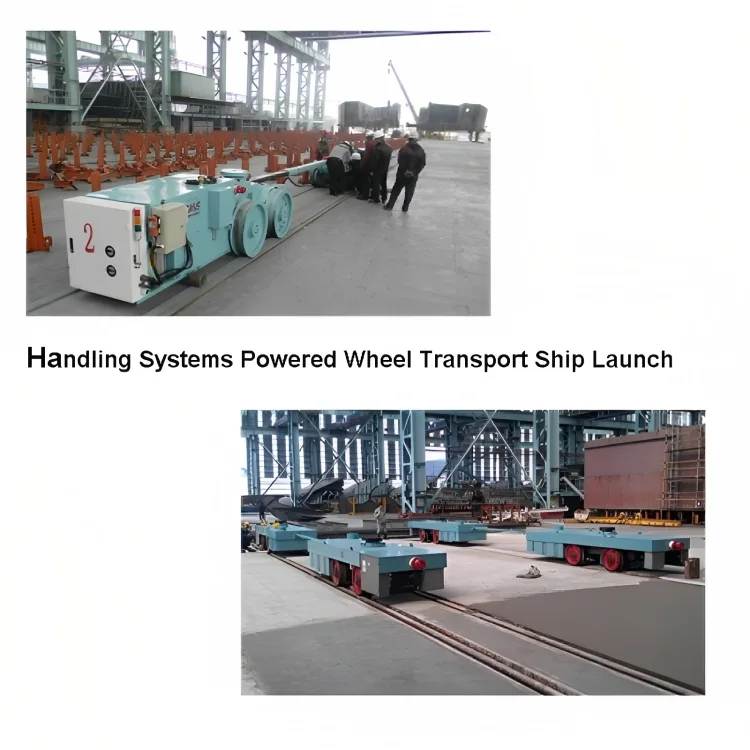

Handling Systems Powered Wheel Transport Ship Launch

Capacity: 80-300 ton

Lifting Height: 1000 mm

Max. Operating Pressure: 200-300 bar

Running wheel diameter (mm): 750

Speed of movementwith full loading: 5-10 m/min

Speed of movement with empty loading: 10-20m/min

Input voltage: 220-576V 3Ph

Walking conditions

Hydraulic Transportation Car for Ship Lifting System

Handling Systems Powered Wheel Transport Ship Launch

Capacity: 80-300 ton

Lifting Height: 1000 mm

Max. Operating Pressure: 200-300 bar

Running wheel diameter (mm): 750

Speed of movementwith full loading: 5-10 m/min

Speed of movement with empty loading: 10-20m/min

Input voltage: 220-576V 3Ph

Walking conditions: OrbitalDesign for "ship building in sections" which equipments need to be transported on long distance.

High precision equipment to adjust the ship in three dimensionals.

Single equipment capacity of 80t, 150, 300t.

Can be designed according to customers requirements. (degree of automation, degree of precision, load weight and moving speed).

Hydraulic vehicle system for shipping transportation is a professional and important hydraulic transportation equipment used for transporting the shipping at orbit type.With the transportation functions of synchronous lifting, self-drive advancing and synchronous movement controlled by PLC system equipped on ship hull, it can solve the problems of low automatic degree, labor-intensive requirement and operational complexity for the traditional shipbuilding industry.

Model Number	Capacity	Pressure	Lifting Height	Orbital width	Running wheel diameter	Speed of movement with full loading	Speed of movement with empty loading	Input voltage	Walking conditions
Model Number	(ton)	(bar)	(mm)	(mm)	(mm)	m/min	m/min	Input voltage	Walking conditions
SVS-XD-80T	80	200-300	1000	1000	750	5-10	10-20	220-576V 3Ph	Orbital
SVS-XD-150T	150	200-300	1000	1000	750	5-10	10-20	220-576V 3Ph	Orbital

Tip:

SAIVS Industrial provides top-quality SVS Series Ship Transportation Trolley for hydraulic systems in various industries. Our products are designed for performance, reliability, and durability. We offer a wide range of products to suit your needs, including upgrades, maintenance, and repairs.

PROVIDING EXCELLENT SOLUTIONS BY SAIVS™

Speak to one of our experts today to learn more about our SVS Series Ship Transportation Trolley products solutions.

Request a Quote
