SAT Series Servo Electric Torque Wrench

Model: SAT-A-TC/SAT-TC Series

Torque Range: 10-10000 Nm

Driving Square: 0.75"/1"/1" / 1.5"/1.5"/1.5" / 2"

Speed: 2-180 RPM

Weight: 4.3-17.8 kg

Noise: 80/85 dB

Precision: ±2/3%

Manufacturer: SAIVS

Country of Origin: China

Description：

Tightening Function (Can Be Shared With User Controller Function)

External input data; Free Format function:
3% accuracy, 2% repeatability, TC version up to 2% accuracy, wider torque

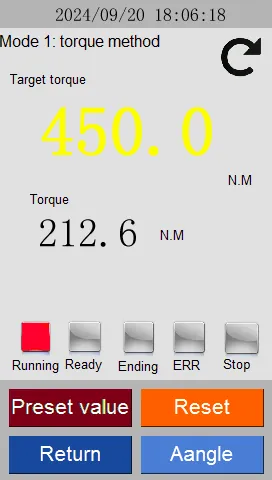

Parameter setting with graphical menu function:
User needs, output data can be freely selected

Tighten Basic Functions

Tightening control methods: torque method, angle method, yield limit method (optional)
Monitoring: Torque Angle Sweep Torque Ratio Time Current
Tightening steps: multiple processes can be selected to support initial tightening and final tightening fast setting.
Tightening parameters: 10 or more sets
Maximum tightening: 20-10 000 Nm (smaller torque can be customized)
Maximum Connection Nodes: 32 to 256, depending on the overall structure of the host computer and system

Basic Functions of Data

Data saving/reading/printing (optional)

Communication

Support Standard Modbus, Profibus, Etc.

Wireless Function

Supporting Wireless Transmission Function

Usb Storage Function

Supporting Usb Connection Storage Card Backup Data

Torque Electric SAT

Application：

Offshore oil and gas platforms: Used for tightening critical connections in offshore installations.

Mining industry: Used for tightening mining equipment and infrastructure.

Construction of steel structures: Used for tightening steel beams and connections.

Automotive maintenance and repair: Used for removing and installing vehicle tires and engine components.

Shipyard maintenance: Used for tightening ship structures and equipment.

Heavy machinery maintenance: Used for disassembling and repairing large machinery equipment.

Image Gallery：

SAT Series Servo Electric Torque Wrench-1-Image-SAIVS

SAT Series Servo Electric Torque Wrench-2-Image-SAIVS

SAT Series Servo Electric Torque Wrench-3-Image-SAIVS

Dimensions：

Torque Electric SAT Series Parameter

SAT-TC

A1	291mm	291mm	316mm	323mm	326mm	341mm	408mm	431mm	441mm	527mm
A2	371mm	371mm	399mm	404mm	412mm	424mm	426mm	469mm	479mm	561mm
B	65mm	65mm	65mm	69mm	76mm	78mm	83mm	93mm	102mm	114mm
C	67mm	67mm	71mm	72mm	76mm	78mm	90mm	101mm	102mm	114mm
D	212mm	212mm	213mm	213mm	213mm	214mm	235mm	241mm	241mm	246mm

SAT-A-TC

A	344mm	344mm	353mm	353mm	362mm	362mm	362mm	362mm
B	62mm	62mm	62mm	62mm	62mm	62mm	62mm	62mm
C	67mm	67mm	72mm	72mm	72mm	72mm	72mm	72mm
D	208mm	208mm	213mm	213mm	213mm	213mm	213mm	213mm

Series Comparison：

Material Code	Model	Torque Range (Nm)	Driving Square	Speed (RPM)	Weight W1	Weight W2	Noise
341001	SAT-4/TC	80-400	0.75"	47	4.5kg	5.7kg	80dB
341002	SAT-6/TC	120-600	0.75"	25	4.5kg	5.7kg	80dB
341004	SAT-10/TC	200-1000	0.75"	16.4	4.6kg	5.8kg	80dB
341006	SAT-16/TC	320-1600	1"	11.8	4.9kg	6.1kg	80dB
341008	SAT-20/TC	400-2000	1"	9.3	5.8kg	7kg	80dB
341010	SAT-30/TC	600-3000	1"	7.8	6.7kg	7.9kg	85dB
341012	SAT-40/TC	800-4000	1" / 1.5"	5.8	7.5kg	8.7kg	85dB
341013	SAT-60/TC	1200-6000	1.5"	3.7	10.2kg	11.4kg	85dB
341014	SAT-80/TC	1600-8000	1.5"	2.9	11.5kg	12.7kg	85dB
341015	SAT-100/TC	2000-10000	1.5" / 2"	2	17.8kg	19kg	85dB

ps: SAT is W1, A1; SAT -TC is W2, A2. * stands for the torque and can be changed to bent-shaped. If there are minor adjustments for some models, please refer

to the factory. Parameters.

Material Code	Model	Torque Range (Nm)	Driving Square	Speed (RPM)	Weight (Kg)	Noise
341017	SAT-A50-TC	10-50	0.75"	180	4.3	80dB
341018	SAT-A60-TC	12-60	0.75"	151	4.3	80dB
341019	SAT-A80-TC	20-80	0.75"	113	4.7	80dB
341020	SAT-A100-TC	20-100	0.75"	90	4.7	80dB
341021	SAT-A120-TC	25-120	0.75"	75	4.8	80dB
341022	SAT-A150-TC	30-150	0.75"	42.9	4.9	80dB
341023	SAT-A200-TC	40-200	0.75"	35.7	4.9	80dB
341024	SAT-A300-TC	60-300	0.75"	21.5	5	80dB
