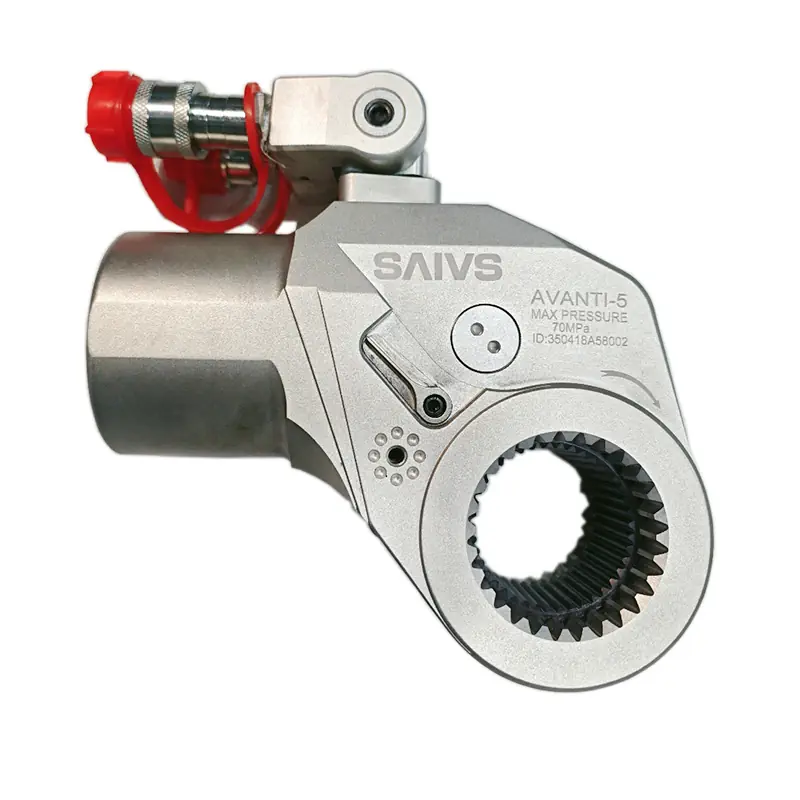

Description:
Maximum flexibility with full range Interchangeable hexagon cassettes and reducing inserts, no tools necessary .
Compact nose radius allows the tool to perform easily in tighter spaces.
Constant torque output provides accuracy up-to ±3%.
Multi direction high flow swivel manifold ( 360°X-axis * 180°Y-axis ).
Fast operation cycle, fine tooth ratchet, corrosion resistance, low weight, high strength design.Air and electric torque wrench pumps that are idea for use with Hydraulic Torque Wrenches.
High-power Hydraulic torque wrench generally refers to a bolt fastening tool capable of outputting and setting torque. It is a high-pressure hydraulic tool widely used in equipment repair and installation in many heavy chemical industries.
How to Choose a Low Profile Hexagon Wrench ?
Please order drive unit and cassette separately and pay attention to the same size, for example SHWD20 and SHWG20-65.Choose the appropriate SHWD20 Drive unit.
Select SHWG20-65 driving head according to the bolt size required for application.
Add reducers for additional nut sizes, the combinations of use of different cassettes and reducers provide the maximum capability to achieve diverse jobs .
Drive Unit Model Number |
| SHWD10 |
| Drive Unit Model Number |
| SHWD20 |
| Drive Unit Model Number |
| SHWD30 |
Maximum Torque |
| 2349 N.m |
| Maximum Torque |
| 5054 N.m |
| Maximum Torque |
| 9423N.m |
Hexagon Head | S | R | Weight |
| Hexagon Head | S | R | Weight |
| Hexagon Head | S | R | Weight |
( mm ) | ( inch ) | ( mm ) | ( kg ) |
| ( mm ) | ( inch ) | ( mm ) | ( kg ) |
| ( mm ) | ( inch ) | ( mm ) | ( kg ) |
SHWG10-50 | 50 | 2 | 40.8 | 1.5 |
| SHWG20-75 | 75 | 215/16 | 57.1 | 4.5 |
| SHWG30-90 | 90 | 39/16 | 68.6 | 6.5 |
SHWG10-46 | 46 | 113/16 | 38.1 | 1.5 |
| SHWG20-70 | 65 | 23/4 | 54.6 | 4.5 |
| SHWG30-85 | 85 | 33/8 | 67.6 | 6.5 |
SHWG10-41 | 41 | 15/8 | 35.1 | 1.4 |
| SHWG20-65 | 65 | 29/16 | 52.3 | 4.4 |
| SHWG30-80 | 80 | 31/8 | 64.6 | 6.3 |
SHWG10-36 | 36 | 17/16 | 31.6 | 1.36 |
| SHWG20-60 | 60 | 23/8 | 50.6 | 4.4 |
| SHWG30-75 | 75 | 215/16 | 61.6 | 6.3 |
SHWG10-34 | 34 | 15/16 | 31.6 | 1.3 |
| SHWG20-55 | 55 | 23/16 | 47.6 | 4.2 |
| SHWG30-70 | 70 | 23/4 | 59.6 | 6.1 |
SHWG10-32 | 32 | 11/4 | 30.6 | 1.4 |
| SHWG20-50 | 50 | 2 | 45.6 | 4.2 |
| SHWG30-65 | 65 | 29/16 | 56.6 | 5.9 |
SHWG10-30 | 30 | 13/16 | 30.6 | 1.4 |
| SHWG20-46 | 46 | 113/16 | 43.6 | 4 |
| SHWG30-60 | 60 | 23/8 | 53.6 | 5.8 |
SHWG10-27 | 27 | 11/16 | 29.6 | 1.4 |
| SHWG20-41 | 41 | 15/8 | 43.6 | 4.1 |
| SHWG30-55 | 55 | 23/16 | 51.6 | 5.6 |
SHWG10-24 | 24 | 15/16 | 29.6 | 1.4 |
| SHWG20-36 | 36 | 17/16 | 37.6 | 3.8 |
| SHWG30-50 | 50 | 2 | 47.6 | 5.3 |
SHWG10-22 | 22 | 7/8 | 29.6 | 1.4 |
| SHWG20-34 | 34 | 15/16 | 37.6 | 3.9 |
| SHWG30-46 | 46 | 113/16 | 47.6 | 5.5 |
SHWG10-19 | 19 | 3/4 | 29.6 | 1.4 |
|
|
|
|
|
|
| SHWG30-41 | 41 | 15/8 | 47.6 | 5.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Drive Unit Model Number |
| SHWD40 |
| Drive Unit Model Number |
| SHWD50 |
| Drive Unit Model Number |
| SHWD60 |
Maximum Torque |
| 15565 N.m |
| Maximum Torque |
| 21960 N.m |
| Maximum Torque |
| 38463 N.m |
Hexagon Head | S | R | Weight |
| Hexagon Head | S | R | Weight |
| Hexagon Head | S | R | Weight |
( mm ) | ( inch ) | ( mm ) | ( kg ) |
| ( mm ) | ( inch ) | ( mm ) | ( kg ) |
| ( mm ) | ( inch ) | ( mm ) | ( kg ) |
SHWG40-115 | 115 | 41/2 | 86.6 | 11.9 |
| SHWG50-135 | 135 | 55/16 | 100.6 | 18 |
| SHWG60-155 | 155 | 61/8 | 117.6 | 29.5 |
SHWG40-110 | 110 | 45/16 | 86.6 | 11.6 |
| SHWG50-130 | 130 | 51/8 | 100.6 | 18.2 |
| SHWG60-150 | 150 | 515/16 | 115.6 | 29.1 |
SHWG40-105 | 105 | 41/8 | 80.6 | 11.4 |
| SHWG50-125 | 125 | 415/16 | 95.6 | 17.8 |
| SHWG60-145 | 145 | 53/4 | 111.6 | 28.9 |
SHWG40-100 | 100 | 315/16 | 80.6 | 11.3 |
| SHWG50-120 | 120 | 43/4 | 95.6 | 17.9 |
| SHWG60-140 | 140 | 51/2 | 107.6 | 28.9 |
SHWG40-95 | 95 | 33/4 | 74.6 | 11 |
| SHWG50-115 | 115 | 41/2 | 88.6 | 17.6 |
| SHWG60-135 | 135 | 55/16 | 105.6 | 28.8 |
SHWG40-90 | 90 | 39/16 | 72.6 | 11 |
| SHWG50-110 | 110 | 45/16 | 85.6 | 17.4 |
| SHWG60-130 | 130 | 51/8 | 102.6 | 28.5 |
SHWG40-85 | 85 | 33/8 | 69.6 | 10.8 |
| SHWG50-105 | 105 | 41/8 | 85.6 | 17.5 |
| SHWG60-125 | 125 | 415/16 | 100.5 | 28.5 |
SHWG40-80 | 80 | 31/8 | 66.6 | 10.7 |
| SHWG50-100 | 100 | 315/16 | 78.6 | 17.1 |
| SHWG60-120 | 120 | 43/4 | 95 | 28.3 |
SHWG40-75 | 75 | 215/16 | 63.6 | 10.7 |
| SHWG50-95 | 95 | 33/4 | 76.6 | 16.9 |
| SHWG60-115 | 115 | 41/2 | 92 | 28.3 |
SHWG40-70 | 70 | 23/4 | 58.6 | 10.5 |
| SHWG50-90 | 90 | 39/16 | 73.6 | 16.8 |
| SHWG60-110 | 110 | 45/16 | 90 | 28.3 |
SHWG40-65 | 65 | 29/16 | 58.6 | 10.6 |
| SHWG50-85 | 85 | 33/8 | 70.6 | 16.8 |
| SHWG60-105 | 105 | 41/8 | 87 | 27.9 |
|
|
|
|
|
| SHWG50-80 | 80 | 31/8 | 67.6 | 16.5 |
| SHWG60-100 | 100 | 315/16 | 83 | 27.9 |
|
|
|
|
|
| SHWG50-75 | 75 | 215/16 | 64.6 | 16.5 |
| SHWG60-95 | 95 | 33/4 | 80 | 27.5 |
|
|
|
|
|
|
|
|
|
|
|
| SHWG60-90 | 90 | 39/16 | 78 | 27.5 |
|
|
|
|
|
|
|
|
|
|
|
| SHWG60-85 | 85 | 33/8 | 75 | 27.1 |
|
|
|
|
|
|
|
|
|
|
|
| SHWG60-80 | 80 | 31/8 | 70 | 27.1 |
Application:
Hydroelectric power plants and wind farms: Used for tightening turbine and power generation equipment.
Construction of steel structures: Used for tightening steel beams and connections.
Aircraft maintenance: Used for tightening aircraft parts and structures.
Infrastructure development: Used for securing road signs and traffic lights.
Manufacturing assembly lines: Used for torque-controlled assembly of products.
Foundries: Used for tightening castings and molds.
Image Gallery:
Specifications:
Dimensions:
Impact Socket:
Drive Unit Model Number | Hexagon Head Model Number | Hexagon Size | Hexagon Reducers Model Number | Reducer Lock Model |
(mm) | Model Number | A/B(mm) | Model Number | A/B(mm) | Model Number | A/B(mm) |
SHW10 | SHWG10-50 | 50 | 2SH5041 | 50/41 | 2SH5036 | 50/36 | 2SH5032 | 50/32 | H-50 |
SHWG10-46 | 46 | 2SH4636 | 46/36 | 2SH4632 | 46/32 | 2SH4630 | 46/30 | H-46 |
SHWG10-41 | 41 | 2SH4132 | 41/32 | 2SH4130 | 41/30 | 2SH4127 | 41/27 | H-41 |
SHWG10-36 | 36 | 2SH3630 | 36/30 | 2SH3627 | 36/27 |
|
| H-36 |
SHWG10-32 | 32 | 2SH3227 | 32/27 |
|
|
|
| H-32 |
SHW20 | SHWG20-75 | 75 | 4SH7565 | 75/65 | 4SH7560 | 75/60 | 4SH7555 | 75/55 | H-75 |
SHWG20-70 | 70 | 4SH7060 | 70/60 | 4SH7055 | 70/55 | 4SH7050 | 70/50 | H-70 |
SHWG20-65 | 65 | 4SH6555 | 65/55 | 4SH6550 | 65/50 | 4SH6546 | 65/46 | H-65 |
SHWG20-60 | 60 | 4SH6050 | 60/50 | 4SH6046 | 60/46 | 4SH6041 | 60/41 | H-60 |
SHWG20-55 | 55 | 4SH5546 | 55/46 | 4SH5541 | 55/41 | 4SH5536 | 55/36 | H-55 |
SHWG20-50 | 50 | 4SH5041 | 50/41 | 4SH5036 | 50/36 | 4SH5032 | 50/32 | H-50 |
SHWG20-46 | 46 | 4SH4636 | 46/36 | 4SH4632 | 46/32 | 4SH4630 | 46/30 | H-46 |
SHWG20-41 | 41 | 4SH4132 | 41/32 | 4SH4130 | 41/30 | 4SH4127 | 41/27 | H-41 |
SHWG20-36 | 36 | 4SH3630 | 36/30 | 4SH3627 | 36/27 |
|
| H-36 |
SHWG20-32 | 32 | 4SH3227 | 32/27 |
|
|
|
| H-32 |
SHW30 | SHWG30-90 | 90 | 8SH9080 | 90/80 | 8SH9075 | 90/75 | 8SH9070 | 90/70 | H-90 |
SHWG30-85 | 85 | 8SH8575 | 85/75 | 8SH8570 | 85/70 | 8SH8565 | 85/65 | H-85 |
SHWG30-80 | 80 | 8SH8070 | 80/70 | 8SH8065 | 80/65 | 8SH8060 | 80/60 | H-80 |
SHWG30-75 | 75 | 8SH7565 | 75/65 | 8SH7560 | 75/60 | 8SH7555 | 75/55 | H-75 |
SHWG30-70 | 70 | 8SH7060 | 70/60 | 8SH7055 | 70/55 | 8SH7050 | 70/50 | H-70 |
SHWG30-65 | 65 | 8SH6555 | 65/55 | 8SH6550 | 65/50 | 8SH6546 | 65/46 | H-65 |
SHWG30-60 | 60 | 8SH6050 | 60/50 | 8SH6046 | 60/46 |
|
| H-60 |
SHWG30-55 | 55 | 8SH5546 | 55/46 | 8SH5541 | 55/41 |
|
| H-55 |
SHW40 | SHWG40-115 | 115 | 14SH115105 | 115/105 | 14SH115100 | 115/100 | 14SH11595 | 115/95 | H-115 |
SHWG40-110 | 110 | 14SH110100 | 110/100 | 14SH11095 | 110/95 | 14SH11090 | 110/90 | H-110 |
SHWG40-105 | 105 | 14SH10595 | 105/95 | 14SH10590 | 105/90 | 14SH10585 | 105/85 | H-105 |
SHWG40-100 | 100 | 14SH10090 | 100/90 | 14SH10085 | 100/85 | 14SH10080 | 100/80 | H-100 |
SHWG40-95 | 95 | 14SH9585 | 95/85 | 14SH9580 | 95/80 | 14SH9575 | 95/75 | H-95 |
SHWG40-90 | 90 | 14SH9080 | 90/80 | 14SH9075 | 90/75 | 14SH9070 | 90/70 | H-90 |
SHWG40-85 | 85 | 14SH8575 | 85/75 | 14SH8570 | 85/70 | 14SH8565 | 85/65 | H-85 |
SHWG40-80 | 80 | 14SH8070 | 80/70 | 14SH8065 | 80/65 |
|
| H-80 |
SHWG40-75 | 75 | 14SH7565 | 75/65 |
|
|
|
| H-75 |
SHW50 | SHWG50-135 | 135 | 18SH135125 | 135/125 | 18SH135120 | 135/120 | 18SH135115 | 135/115 | H-135 |
SHWG50-130 | 130 | 18SH130120 | 130/120 | 18SH130115 | 130/115 | 18SH130110 | 130/110 | H-130 |
SHWG50-120 | 120 | 18SH120110 | 120/110 | 18SH120105 | 120/105 | 18SH120100 | 120/100 | H-120 |
SHWG50-115 | 115 | 18SH115105 | 115/105 | 18SH115100 | 115/100 | 18SH11595 | 115/95 | H-115 |
SHWG50-110 | 110 | 18SH110100 | 110/100 | 18SH11095 | 110/95 | 18SH11090 | 110/90 | H-110 |
SHWG50-105 | 105 | 18SH10595 | 105/95 | 18SH10590 | 105/90 | 18SH10585 | 105/85 | H-105 |
SHWG50-100 | 100 | 18SH10090 | 100/90 | 18SH10085 | 100/85 | 18SH10080 | 100/80 | H-100 |
SHWG50-95 | 95 | 18SH9585 | 95/85 | 18SH9580 | 95/80 | 18SH9575 | 95/75 | H-95 |
SHWG50-90 | 90 | 18SH9080 | 90/80 | 18SH9075 | 90/75 |
|
| H-90 |
SHWG50-85 | 85 | 18SH8575 |
|
|
|
|
| H-85 |
SHW60 | SHWG60-155 | 155 | 30SH155145 | 155/145 | 30SH155130 | 155/130 | 30SH155120 | 155/120 | H-155 |
SHWG60-145 | 145 | 30SH145130 | 145/130 | 30SH145120 | 145/120 | 30SH145115 | 145/115 | H-145 |
SHWG60-130 | 130 | 30SH130120 | 130/120 | 30SH130115 | 130/115 | 30SH130110 | 130/110 | H-130 |
SHWG60-120 | 120 | 30SH120110 | 120/110 | 30SH120105 | 120/105 | 30SH120100 | 120/100 | H-120 |
SHWG60-115 | 115 | 30SH115105 | 115/105 | 30SH115100 | 115/100 | 30SH11595 | 115/95 | H-115 |
SHWG60-110 | 110 | 30SH110100 | 110/100 | 30SH11095 | 110/95 | 30SH11090 | 110/90 | H-110 |
SHWG60-105 | 105 | 30SH10595 | 105/95 | 30SH10590 | 105/90 | 30SH10585 | 105/85 | H-105 |
SHWG60-100 | 100 | 30SH10090 | 100/90 | 30SH10085 | 100/85 | 30SH10080 | 100/80 | H-100 |
SHWG60-95 | 95 | 30SH9585 | 95/85 | 30SH9580 | 95/80 |
|
| H-95 |
SHWG60-90 | 90 | 30SH9080 | 90/80 |
|
|
|
| H-90 |
Series Comparison:
Drive Unit Model Number | Torque Range | Hexagon Range | Drive Unit Weight | Dimensions |
L | C | H1 | H2 | W1 | W2 |
N.m | Ft.lbs | mm | kg | mm |
SHWD10 | 235-2349 | 173-1733 | 19-50 | 0.7 | 203 | 116 | 131 | 96 | 32 | 50 |
SHWD20 | 505-5054 | 373-3728 | 34-75 | 1.7 | 249 | 151.5 | 160 | 124 | 42 | 64 |
SHWD30 | 942-9423 | 695-6950 | 41-90 | 3.1 | 305 | 188.5 | 196 | 160 | 53 | 75 |
SHWD40 | 1556-15565 | 1148-11481 | 65-115 | 4.3 | 332 | 234 | 242 | 191.5 | 64 | 87 |
SHWD50 | 2196-21960 | 1620-16198 | 75-135 | 6 | 382 | 270 | 265 | 215 | 73 | 97 |
SHWD60 | 3846-38463 | 2837-28370 | 80-155 | 10.6 | 449 | 317.5 | 305 | 255 | 85 | 120 |
