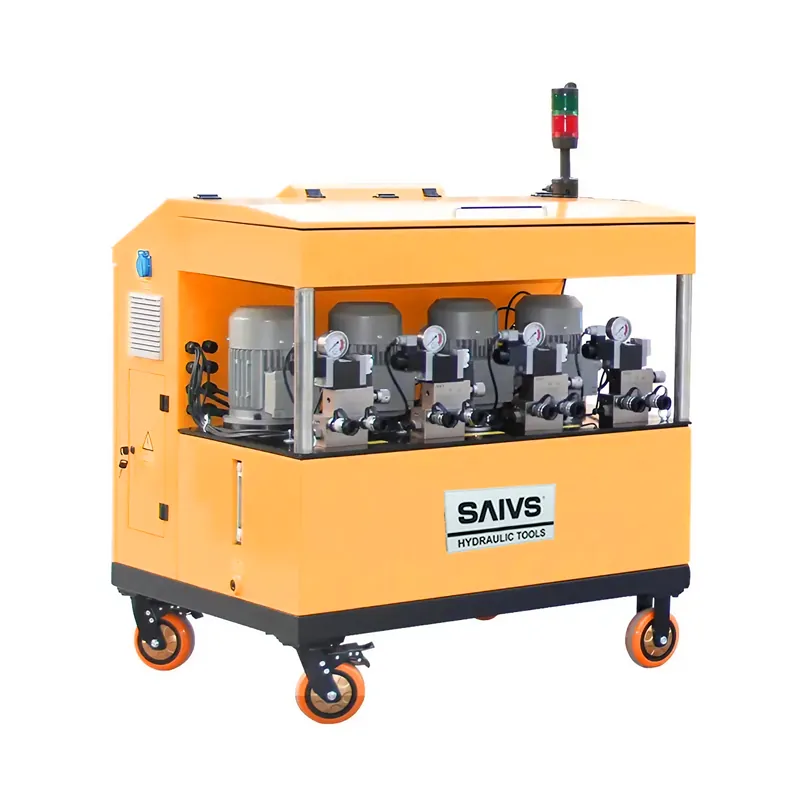

HLA, Double Acting, PLC Synchronous Lifting Systems

Lifting Points: 2-4

Synchronous Precision: ≤±0.2 mm

Motor Power: 1.1-5.5 KW

Working Pressure: 700 bar

Voltage: 380 AC/V

Oil Tank Capacity: 130-500 L

Weight: 175-545 kg

Structure: Piston Type

Acting Way: Double Acting

Manufacturer: SAIVS

Country of Origin: China

Minimum Order: 1 Piece

Lifting Points: 2-4

Synchronous Precision: ≤±0.2 mm

Motor Power: 1.1-5.5 KW

Working Pressure: 700 bar

Voltage: 380 AC/V

Oil Tank Capacity: 130-500 L

Weight: 175-545 kg

Structure: Piston Type

Acting Way: Double Acting

Manufacturer: SAIVS

Country of Origin: China

Minimum Order: 1 Piece

This Hydraulic System uses a closed-loop automatic control mode for multi-point control, suitable for heavy load weighing, synchronous pushing, lifting, lowering, attitude leveling, and voltage regulation. With frequency conversion speed regulation, it continuously adjusts output flow, ensuring smooth and synchronized cylinder control during lifting and lowering. It supports up to 99 synchronized points, with advanced safety measures, precise load distribution, and traceable lifting data for reliable operation.

Application

Synchronous Lifting & Maintenance of Large Electric Shovels

Model	Lifting Points	Synchronous Precision	Motor Power	Voltage	Working Pressure	Flow	Oil Tank Capacity	Dimensions	Weight
Model	Lifting Points	(mm)	(KW)	(AC/V)	(MPa)	(L)	(L)	(mm)	(kg)
HLA-2A	2	≤±0.2	1.1	380	70	2x1	130	750x810x1140	175
HLA-2B	2	≤±0.2	2.2	380	70	2x2	130	750x810x1140	235
HLA-2C	2	≤±0.2	5.5	380	70	2x5	250	950x870x1160	295
HLA-4A	4	≤±0.2	1.1	380	70	4x1	200	1100x870x1150	345
HLA-4B	4	≤±0.2	2.2	380	70	4x2	250	1200x810x1110	425
HLA-4C	4	≤±0.2	5.5	380	70	4x5	500	1100x950x1120	545
