P80 Two Speed Hydraulic Steel Hand Pump,Single-acting-Hydraulic pump-SAIVS

Model:P80

Pump Type:Double Speed

Used with Cylinder:Single-Acting

Usable Oil Capacity: 2200cm³

Max.Operating Pressure: 700 bar

Pressure Rating 1st Stage: 25bar/348.1 psi

Pressure Rating 2nd Stage:700bar/10000 psi

Oil Displacement Per Stroke 1st Stage (cm³)16.22

Oil Displacement Per Stroke 2nd Stage (cm³)2.46

Weight:10.9 kg

Minimum Order:1Piece

Manufacturer:SAIVS

Country of Origin:China

SAIVS offers high-pressure, two-speed manual hydraulic hand pumps in a robust,

lightweight steel design. Ideal for portability and demanding environments,

the pumps provide efficient operation with high flow for filling and high pressure for power.

P80 Two Speed,Single-acting Hydraulic Steel Hand Pump

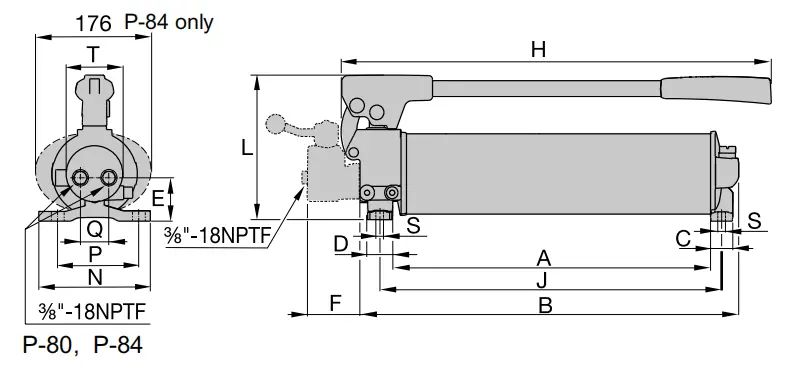

Model Number	A	B	C	D	E	F	H	J	L	M	N	P	Q	R	S	T
P80	425	539	25	44	54	-	527	29	174	19	146	121	-	21	8	67

Model Number	Pump Type	Usable Oil Capacity (cm³)	Pressure Rating (bar)	Oil Displacement per Stroke (cm³)	Max. Handle Effort (kg)	Piston Stroke (mm)	Weight (kg)
P80	Two Speed	2200	1^st stage: 25 2^nd stage: 700	1^st stage: 16.22 2^nd stage: 2.46	47	25.4	10.9

Model Number	Pump Type	Usable Oil Capacity (cm³)	Pressure Rating (bar)	Oil Displacement per Stroke (cm³)	Max. Handle Effort (kg)	Piston Stroke (mm)	Weight (kg)
P392	Double speed	655	1^st stage: 25 2^nd stage: 700	1^st stage: 15 2^nd stage: 2.62	50	20.6	5.9
P80		2200	1^st stage: 25 2^nd stage: 700	1^st stage: 16.22 2^nd stage: 2.46	47	25.4	10.9
P84		2200	1^st stage: 25 2^nd stage: 700	1^st stage: 16.22 2^nd stage: 2.46	49	25.4	13.2
P462		7423	1^st stage: 14 2^nd stage: 700	1^st stage: 26.20 2^nd stage: 4.75	49	38.1	27
P464		7423	1^st stage: 14 2^nd stage: 700	1^st stage: 26.20 2^nd stage: 4.75	49	38.1	27.7

Tip:

SAIVS Industrial provides top-quality P80 Two Speed Hydraulic Steel Hand Pump,Single-acting for hydraulic systems in various industries. Our products are designed for performance, reliability, and durability. We offer a wide range of products to suit your needs, including upgrades, maintenance, and repairs.

PROVIDING EXCELLENT SOLUTIONS BY SAIVS™

Speak to one of our experts today to learn more about our P80 Two Speed Hydraulic Steel Hand Pump,Single-acting products solutions.

Request a Quote
