P392 Two Speed,Hydraulic Steel Hand Pump,Single-acting-Hydraulic pump-SAIVS

Model:P392

Pump Type:Double Speed

Used with Cylinder:Single-Acting

Usable Oil Capacity: 655 cm³

Max.Operating Pressure: 700 bar

Pressure Rating 1st Stage: 25bar/348.1 psi

Pressure Rating 2nd Stage:700bar/10000 psi

Oil Displacement Per Stroke 1st Stage: 15cm³

Oil Displacement Per Stroke 2nd Stage: 2.62cm³

Weight:5.9 kg

Minimum Order:1Piece

Manufacturer:SAIVS

Country of Origin:China

With a choice of oil capacities up to Reservoir Capacity:655-7423cm

Flow at Rated Pressure: 2.46-4.75cm'/stroke

Maximum Operating Pressure:700 bar / 10000 Psi

you will find Steel Hand Pumps that can handle multiple cylinder hook-ups, including models to suit either Single-Acting and Double-Acting Cylinders.

SAIVS's hydraulic hand pump is designed for portability, durability and easy-of-use.

A large selection of hydraulic hand pumps makes it easy to find the most effective compact high pressure pump.

The manual hand is also equipped with numerous safety features to provide dependable performance, while maintaining worker safety.

P392 Two Speed,Single-acting Hydraulic Steel Hand Pump

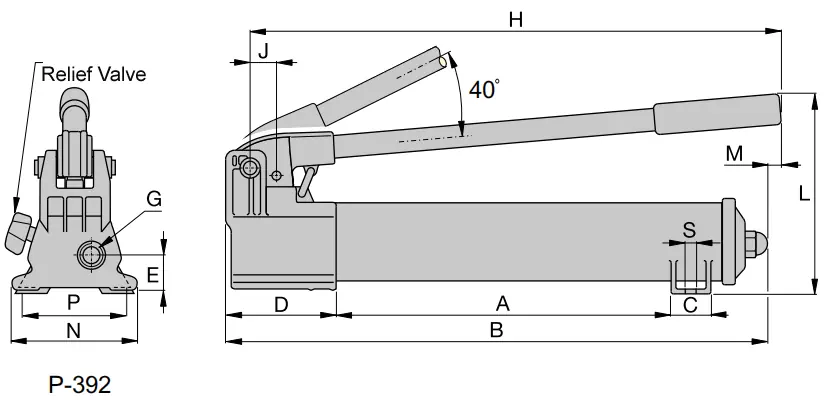

Model Number	A	B	C	D	E	F	H	J	L	M	N	P	Q	R	S	T
P392	393	520	35	38	32	-	464	30	119	65	133	-	-	-	-	-

Model Number	Pump Type	Usable Oil Capacity (cm³)	Pressure Rating (bar)	Oil Displacement per Stroke (cm³)	Max. Handle Effort (kg)	Piston Stroke (mm)	Weight (kg)
P392	Double speed	655	1^st stage: 25 2^nd stage: 700	1^st stage: 15 2^nd stage: 2.62	50	20.6	5.9
P80		2200	1^st stage: 25 2^nd stage: 700	1^st stage: 16.22 2^nd stage: 2.46	47	25.4	10.9
P84		2200	1^st stage: 25 2^nd stage: 700	1^st stage: 16.22 2^nd stage: 2.46	49	25.4	13.2
P462		7423	1^st stage: 14 2^nd stage: 700	1^st stage: 26.20 2^nd stage: 4.75	49	38.1	27
P464		7423	1^st stage: 14 2^nd stage: 700	1^st stage: 26.20 2^nd stage: 4.75	49	38.1	27.7

Tip:

SAIVS Industrial provides top-quality P392 Two Speed,Hydraulic Steel Hand Pump,Single-acting for hydraulic systems in various industries. Our products are designed for performance, reliability, and durability. We offer a wide range of products to suit your needs, including upgrades, maintenance, and repairs.

PROVIDING EXCELLENT SOLUTIONS BY SAIVS™

Speak to one of our experts today to learn more about our P392 Two Speed,Hydraulic Steel Hand Pump,Single-acting products solutions.

Request a Quote

Tags： P392 Two Speed Hydraulic Steel Hand Pump Single-acting
