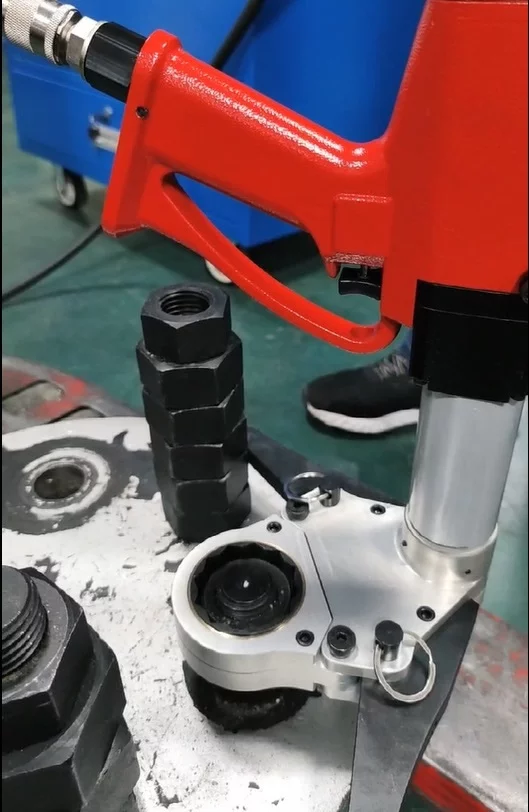

The cartridge system allows for the offset link to be used with AF nut sizes ranging from 24 to 90 millimeters.
The Side-Drive Cartridges are easy to fit or remove through two bolts.
Square drive tools（torque wrenches） mount on the offset link,
which can be used as a ratchet link. Ideal for applications with limited space around or above the nut.
Safe, Fast and Accurate, Flexible reaction arm, customer specific designs optional.
The drive can be applied easily on the electric, battery-powered or Pneumatic Torque Wrenches.
STM Offset Link refers to a chain connector, usually made of metal, used to connect the chain link in the transmission.
The difference between STM Offset Link and ordinary chain connectors is that it has a special offset design that allows for changes in the position of chain connection points, thereby adapting to more complex transmission scenarios.
Common application scenarios include chain transmission systems in industrial equipment, bicycles, motorcycles, and other fields.
Side-drive Offset Link
Square Drive(in)
R（mm）
Drive Ratio
Drive Plate Model
D（mm）
E（mm）
A（mm）
F（mm）
B（mm）
Hexagon C（mm）
Drive Head Model
STDM75-24
3/4”
30
1.46
STM75
123.5
205
107
32
137
24
SDM75-24
STDM75-32
3/4”
30
1.46
123.5
205
107
32
137
32
SDM75-32
STDM75-34
3/4”
32
1.3
127
211
107
32
137
34
SDM75-34
STDM75-36
3/4”
32
1.3
127
211
107
32
137
36
SDM75-36
STDM75-42
3/4”
34.5
1.2
129
215
107
32
137
41
SDM75-42
STDM75-46
3/4”
37.5
1.12
131
220
107
32
137
46
SDM75-46
STDM75-50
3/4”
40.5
1.05
134
226
107
32
137
50
SDM75-50
STDM75-55
3/4”
44.5
0.99
138.5
235
107
32
137
55
SDM75-55
STDM75-60
3/4”
47.5
0.9
141.5
241
107
32
137
60
SDM75-60
STDM75-65
3/4”
50
0.86
144
245.5
107
32
137
65
SDM75-65
STDM100-46
1”
45
1.52
STM100
187
302
165
42.5
203
46
SDM100-46
STDM100-50
1”
45
1.52
187
302
165
42.5
203
50
SDM100-50
STDM100-55
1”
46.5
1.39
188.5
305
165
42.5
203
55
SDM100-55
STDM100-60
1”
48
1.33
190
308
165
42.5
203
60
SDM100-60
STDM100-65
1”
53
1.22
195
318
165
42.5
203
65
SDM100-65
STDM100-70
1”
56
1.15
196.5
322
165
42.5
203
70
SDM100-70
STDM100-75
1”
57.5
1.1
199.5
327
165
42.5
203
75
SDM100-75
STDM100-80
1”
59
1.06
201
330
165
42.5
203
80
SDM100-80
STDM100-85
1”
65.5
0.97
207.5
343
165
42.5
203
85
SDM100-85
STDM100-90
1”
73
0.93
212
355
173
42.5
203
90
SDM100-90
Application：
Power plant maintenance: Used for tightening steam boilers and power generation equipment.
Heavy machinery maintenance: Used for disassembling and repairing large machinery equipment.
Infrastructure development: Used for securing road signs and traffic lights.
Manufacturing assembly lines: Used for torque-controlled assembly of products.
Steel and metal fabrication: Used for tightening steel components and metal structures.
General manufacturing industry: Used for various machinery manufacturing and assembly operations.
