SHWD40,15565Nm,Low Profile Hydraulic Torque Wrench

5out of5 based on13 reviews | Write a review

Torque Wrench Model Number:SHWD40

Torque Range(Nm):1556-15565

Torque Range(Ft.lbs):1148-11481

Hexagon Range(mm):65-115

Weight(Kg) / (lbs):4.3kg /9.48 lbs

Maximum Operating Pressure (bar)/(psi):700bar / 10000psi

The low-profile cassettes of our Hydraulic Torque Wrench are designed in a compact and ultra-slim structure, making them perfect for fitting into tight spaces. They offer max

Sample:Contact us for free samples


SAIVS's SHWD series Low Profile Hydraulic Torque Wrench are almost the same as Enerpac’s W series,WREN's LOW Series,HYTORC’s XLCT series, TORCUP’s TX series, HI FORCE’s TWH-N series,SPX's TWSL SERIES and other wrenches in terms of function, quality, and applicable working conditions.

At the same time, SAIVS provides a one-year warranty, more favorable prices, and customized services for special working conditions.

Welcome to Get Latest Price now!

SHWD40 10000Psi 15565Nm Low Profile Hollow Actuator of Hydraulic Ratchet Drive Torque Wrench Cassette AF 65-115mm

1. The low profile cassettes are made in compact and ultra slim structure to fit into tight spaces

2. Rigid steel design ensure the durability, reliability and safety of the tools

3. Maximum flexibility with full range Interchangeable hexagon cassettes and reducing inserts, no tools necessary

4. Compact nose radius allows the tool to perform easily in tighter spaces.

5. Constant torque output provides accuracy up-to ±3%

6. Multi direction high flow swivel manifold  ( 360°X-axis * 180°Y-axis )

7. Fast operation cycle, fine tooth ratchet, corrosion resistance, low weight, high strength design.

How to Choose a Low Profile Hexagon Wrench

Please order drive unit and cassette separately and pay attention to the same size, for example SWHD20 and SWHG20-65

 1, Choose the appropriate Drive unit .

 2. Find the cassettes for your application (nut size) .

 3, Add reducers for additional nut sizes, the combinations of use of different cassettes and reducers provide the maximum capability to achieve diverse jobs .


Building construction: Used for installing steel structures and precast components.

Mining industry: Used for tightening mining equipment and infrastructure.

Automotive maintenance and repair: Used for removing and installing vehicle tires and engine components.

Heavy machinery maintenance: Used for disassembling and repairing large machinery equipment.

Bridge construction: Used for tightening bridge structures and bolt connections.

Oil and gas industry: Used for tightening wellheads and pipeline connections.

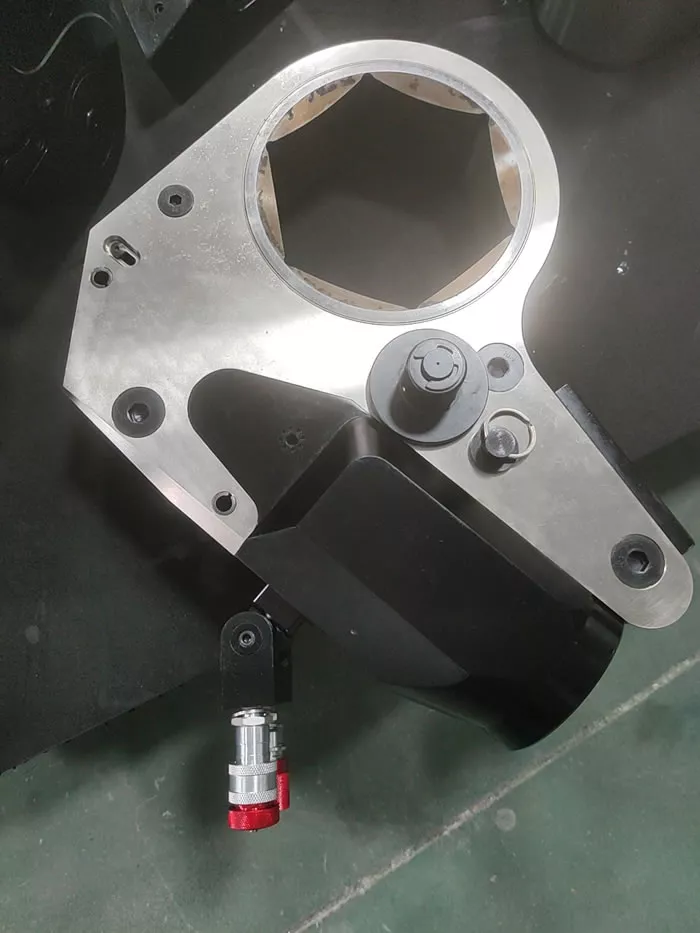

Image Gallery:

SHWD40,15565Nm,Low Profile  Hydraulic Torque Wrench -1-Image-SAIVS
SHWD40,15565Nm,Low Profile  Hydraulic Torque Wrench -2-Image-SAIVS
SHWD40,15565Nm,Low Profile  Hydraulic Torque Wrench -3-Image-SAIVS
SHWD40,15565Nm,Low Profile  Hydraulic Torque Wrench -4-Image-SAIVS
SHWD40,15565Nm,Low Profile  Hydraulic Torque Wrench -5-Image-SAIVS
SHWD40,15565Nm,Low Profile  Hydraulic Torque Wrench -6-Image-SAIVS
SHWD40,15565Nm,Low Profile  Hydraulic Torque Wrench -7-Image-SAIVS
SHWD40,15565Nm,Low Profile  Hydraulic Torque Wrench -8-Image-SAIVS


Hydraulic Torque Wrench Model NumberSHWD40
Hydraulic Torque Wrench Torque Range(Nm)1556-15565
Hydraulic Torque Wrench Torque Range(Ft.lbs)1148-11481
Hexagon Range (mm)65-115
Weight(Kg) / (lbs)4.3kg /9.48 lbs
Maximum Operating Pressure (bar)/(psi)700bar / 10000psi



L: 332  (mm) C: 234(mm)   H1: 242(mm)  H2191.5(mm)  W1: 64(mm)  W2:87(mm)

Impact Socket:

High-strength chromium-molybdenum steel alloy.
Special sizes are available upon request.
The following work for standard and standard transition, if you want to order non-standard Products, please indicate the bolt diameter, nut on the edge, and bolt level such as concrete requirements.

Low Profile Hollow Hydraulic Torque Wren-145.webp


Series Comparison:

Drive Unit  Model Number Torque RangeHexagon Range Drive Unit Weight Dimensions

Product Video:


Speak to one of our experts today to learn more about our SHWD40,15565Nm,Low Profile Hydraulic Torque Wrench products solutions.

Request a Quote

Product Tags:

Torque Wrench Hydraulic Torque Wrench Hydraulic control system Hydraulic Torque Wrenches
  • Q: Are you trading company or manufacturer?
  • A: We are factory with more than 20 years experience.
  • Q: How long for delivery?
  • A: Generally it is 15-30days as we are customized service we confirm with customer when place order.
  • Q: What is the MOQ?
  • A: It depends on what you are buying. Normally, our minimum order is one 20' full container and LCL container (less than a container load) can be acceptable.
  • Q: Can you customize my products?
  • A: Yes, we can customized products with your design drawings like DWG, DXF, DXW, IGES, STEP, PDF etc.
  • Q: What is your terms of payment?
  • A: 30% T/T in advance, balance before shipment, or as per discussion.
  • Q: What about your quality control?
  • A: 1.Checking the raw material after they reach our factory(IQC) 2. Checking the details before the production line operated.3.Have full inspection and routing inspection during mass production(IPQC) 3.Checking the goods after they are finished(FQC). 4.Checking the goods after they are finished(QC). 5.100% inspection and delivery before shipment
  • Q:What if there is a problem with the purchased product?
  • A:If any quality problem happens please take some photos and videos to show the exact problem, then our engineer will judge and give a solution.
  • Q:Do you provide OEM service?
  • A:Yes, we provide OEM service. We will produce products that meet your requirements according to the logo, product parameters and dimensions you provide. Please contact us for more details.
  • Q:Can I be an agent for SAIVS products?
  • A:Of course, please contact us for more details.
