SNC Series Hydraulic Nut Splitters

Hydraulic Breaker Tool Capacity Range: 5-90 ton

Bolt Range: M6-M48

Maximum Operating Pressure: 700 bar

Compact and ergonomic design,easy to use.

Unique angled head design.

Single-acting, spring return cylinder.

Heavy duty chisels can be reground.

Nut Splitters include NPT3/8 quick coupling and dust cap.

Aplication include service trucks,piping industry,tank cleaning,petrochemical,steel construction,mining,etc.

SNC nut cutter,optional pump, pressure gauge, pressure gauge stand and tubing actualization requirements.

Example (To cut M36 nut ):

Selected nut cutter:SNC - 5060,

Selected hand pump:SPS7-1, light manual pump

Selected hose:SZAX-6-NPT3/8, length 6m, connection NPT3/8" rubber hose

Selected pressure gauge:YN-100-100MPa, pressure range: 0-100MPa,gauge diameter 100mm

Selected gauge adaptor: SPS7-1XS

SNC Series.webp

SNC Series2.webp

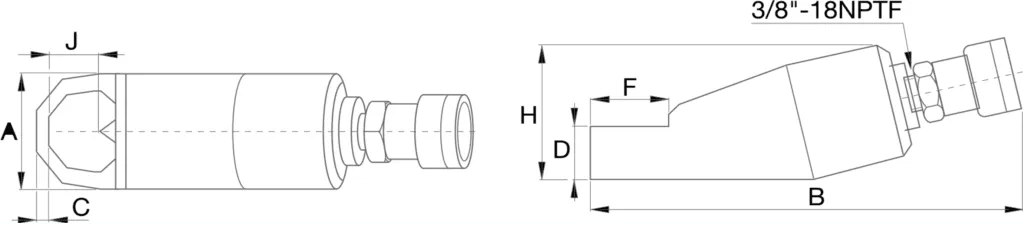

Bolt Range	Hexagon Nut Range	Capacity	Oil Capacity	Model Number	Dimensions(mm)							Weight	Replacement Chisel Model Number
Bolt Range	(mm)	ton(kN)	(cm³)	Model Number	A	B	C	D	F	H	J	(kg)	Replacement Chisel Model Number
M6-M12	10-19	5(49)	15	SNC-1019	40	170	7	19	28	48	21	1.2	SNCB-1019
M12-M16	19-24	10(98)	20	SNC-1924	54	191	10	26	40	62	25	2.0	SNCB-1924
M16-M22	24-32	15(147)	60	SNC-2432	64	222	13	29	51	72	33	3.0	SNCB-2432
M22-M27	32-41	20(196)	80	SNC-3241	75	244	17	36	66	88	43	4.4	SNCB-3241
M27-M33	41-50	35(343)	155	SNC-4150	94	288	21	45	74	105	54	8.2	SNCB-4150
M33-M39	50-60	50(490)	240	SNC-5060	106	318	23	54	90	128	60	11.8	SNCB-5060
M39-M48	60-75	90(882)	492	SNC-6075	156	393	26	72	110	181	80	34.1	SNCB-6075

Tip:
