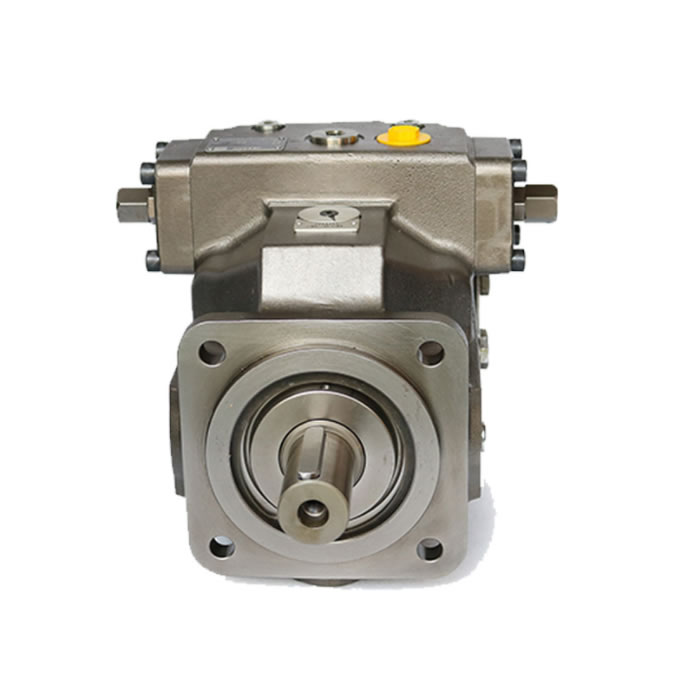

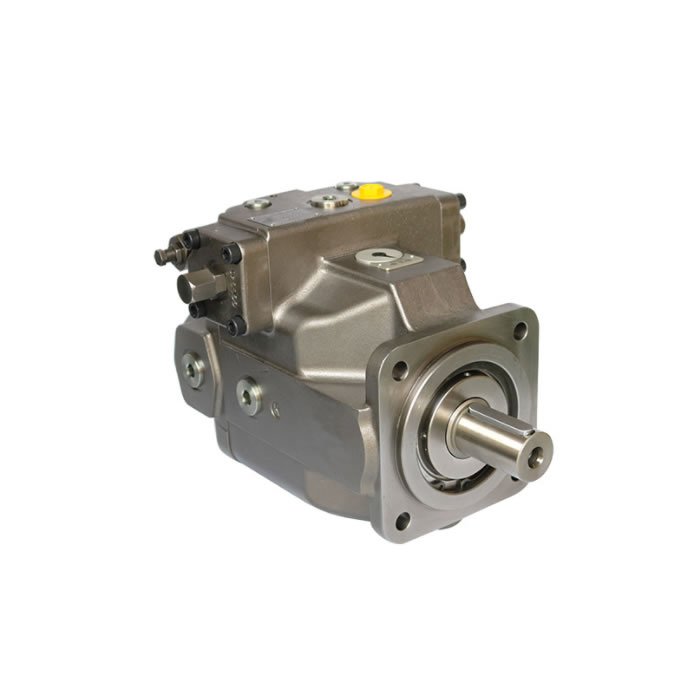

A4vso Series Rexroth Variable Plunger Pump

5out of5based on2 reviews | Write a review

Rexroth High Pressure Hydraulic Axial Piston Pump

Model: A4VSO series

Place of Origin: Shandong,China (Mainland)/Germany

Product: A4VSG series Variable hydraulic pump

Description: Variable displacement hydraulic pump with ISO mounting flange

Displacement: 40, 71, 125, 180, 250, 355, 500, 750, 1000 mL/r

Max. pressure: 350 bar

Max. Speed: 1600-3700 r/min

Main materials

offers original and replacement A4vso Series Rexroth Variable Plunger Pump for our customers. We will save customer costs, increase productivity and profit margins, Welcome to Get Latest Price now!

Rexroth High Pressure Hydraulic Axial piston pump

Model: A4VSO series

Place of Origin: Shandong,China (Mainland)/Germany

Product: A4VSG series Variable hydraulic pump

Description: Variable displacement hydraulic pump with ISO mounting flange

Displacement: 40, 71, 125, 180, 250, 355, 500, 750, 1000 mL/r

Max. pressure: 350 bar

Max. Speed: 1600-3700 r/min

Main materials: Casting iron, copper, steel, oil sealing etc.

Medium: Hydraulic oil

Category: High power weight ratio

Driving type: Electrical power motor

OEM/ODM: Acceptable

Place of Origin:Zhejiang, China

Power:Hydraulic Packaging & Delivery

Working pressure range:350bar~400bar

control mode:Pressure flow control

Material:cast iron

Operating mode:open circuit

Warranty:1 Year

Minimum Order:1 Pieces

Supply Ability:1500 Piece/ Month

A4vso Series Rexroth Variable Plunger Pump01.jpg


Safety instructions

1, A4VSO pump is designed to operate in  open circuit.

System design, installation and commissioning need to be performed by trained technicians and distributors;

2, All hydraulic orifices can only be used to tighten hydraulic maintenance pipelines;

Tightening Torque

1,All the tightening torques listed in this sample are maximum values and should not exceed these values (maximum of internal threads in castings). Please follow the information provided by the manufacturer regarding the maximum allowable fastening torque of the fittings used.

· For DIN 13-compliant fastening screws, it is recommended that the allowable tightening torque be checked according to VDI 2230 (promulgated in 2003) in all cases.;

2,The housing, especially the coil, may be particularly hot during or shortly after the operation of the pump. Please take appropriate safety measures (for example, wear protective clothing).

- All data and information provided with the product must be complied with;

3,All data and information provided with the product must be complied with..

Installation location

1,Optional. During debugging, oil must be injected into the pump housing, and it must be filled when it is running.

In order to reduce the operating noise level, all connecting pipes (oil suction, pressure and tank drain pipes) must be separated from the tank by using flexible components;

2,It is necessary to avoid the use of one-way valves in tank discharge pipelines.

The tank discharge pipeline must be directly connected back to the tank without changing the size of the pipeline. There may be abnormal situation, please consult us in time.

It can be installed vertically and horizontally.

A4vso Series Rexroth Variable Plunger Pump02.jpg

Rexroth A4VSO series hydraulic piston pump

Features

1. Axial plunger variable pump with tilting disc structure for hydrostatic drive in open circuit

2. flow rate is proportional to transmission speed and displacement

3. the stepless change of flow can be realized by adjusting the angle of rotating inclined disk

4. 2 shell drain outlets

5. excellent oil absorption performance

6. low noise level

7. Long usage life

8. axial and radial load capacity of the transmission shaft

9. ideal power weight ratio

10. Multiple control areas

11. short control time

12.The pump is driven by a through shaft and can be mounted with a gear pump or less than

 or equal to the same specification,the axial plunger pump is 100% through shaft driven

13.top quality

14.competitive price


PROVIDING EXCELLENT SOLUTIONS BY SAIVS™


Speak to one of our experts today to learn more about our A4vso Series Rexroth Variable Plunger Pump products solutions.


Request a Quote

Tags: A4vso Rexroth Variable Plunger Pump Hydraulic Pump Rexroth Series Suppliers
  • Q: Are you trading company or manufacturer?
  • A: We are factory with more than 20 years experience.
  • Q: How long for delivery?
  • A: Generally it is 15-30days as we are customized service we confirm with customer when place order.
  • Q: What is the MOQ?
  • A: It depends on what you are buying. Normally, our minimum order is one 20' full container and LCL container (less than a container load) can be acceptable.
  • Q: Can you customize my products?
  • A: Yes, we can customized products with your design drawings like DWG, DXF, DXW, IGES, STEP, PDF etc.
  • Q: What is your terms of payment?
  • A: 30% T/T in advance, balance before shipment, or as per discussion.
  • Q: What about your quality control?
  • A: 1.Checking the raw material after they reach our factory(IQC) 2. Checking the details before the production line operated.3.Have full inspection and routing inspection during mass production(IPQC) 3.Checking the goods after they are finished(FQC). 4.Checking the goods after they are finished(QC). 5.100% inspection and delivery before shipment
  • Q:What if there is a problem with the purchased product?
  • A:If any quality problem happens please take some photos and videos to show the exact problem, then our engineer will judge and give a solution.
  • Q:Do you provide OEM service?
  • A:Yes, we provide OEM service. We will produce products that meet your requirements according to the logo, product parameters and dimensions you provide. Please contact us for more details.
  • Q:Can I be an agent for SAIVS products?
  • A:Of course, please contact us for more details.
