P40,1 Spool,10.6 GPM,Hydraulic Directional Control Valves

5out of5 based on7 reviews | Write a review

Function:Directional Control Valve

Spools range:1-7 spool

Nom.Pressure(MPa):20

Max.Pressure(MPa):31.5

Max.Flow rate(L/min):40/10.57 GPM

Back Pressure(MPa): ≤1

Material:Casting Iron

Warranty:1 Year

Drive:Hydraulic

Place of Origin:Ningbo,ZheJiang

Customized support:OEM,ODM

P40 series integral multiway valve is a kind of middle and high pre

offers original and replacement P40,1 Spool,10.6 GPM,Hydraulic Directional Control Valves for our customers. We will save customer costs, increase productivity and profit margins, Welcome to Get Latest Price now!

Function:Directional Control Valve

Spools range:1-7 spool

Nom.Pressure(MPa):20

Max.Pressure(MPa):31.5

Max.Flow rate(L/min):40/10.57 GPM

Back Pressure(MPa): ≤1

Material:Casting Iron

Warranty:1 Year

Drive:Hydraulic

Place of Origin:Ningbo,ZheJiang

Customized support:OEM,ODM

P40 series integral multiway valve is a kind of middle and high pressure integral

multiway valve introduced from Europe by our company. The valve can be equipped

with overflow valve and one-way valve according to customers' requirements.

The relief valve can adjust the pressure and the one-way valve can prevent the oil flowing backwards reversing.

The valve slide valve function has A,O, P, Y and so on, may arbitrarily combine,

the reversing handle has two kinds of installation forms, facilitates the different

directions the operation, this valve USES the parallel or the series oil circuit,

the design has the pressure to send the outlet to connect with other hydraulic pressure

components to provide the power source. Through the special design sealing way,

causes the valve sealing performance to be remarkable. The valve is widely used in forklift,

sanitation vehicles, small loader and other construction machinery Hydraulic System.


Directional control valves perform only three functions:

1.Stop fluid flow

2.Allow fluid flow

3.Change direction of fluid flow.

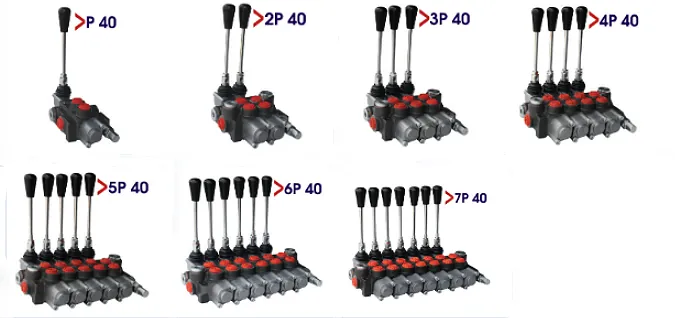

1-7 spool control options


Exterior Size Chart for P40, Hydraulic Directional Control Valves


Feature

1. P40 series valves with middle-high pressure monoblock construction is developed based on Europetechnology.

2. Inner check valve.The check valve inside the valve body is to insure the hydraulic oil not to beretumed.

3. Inner relief valve:The relief valve inside the valve body is able to adjust the hydraulic system working pressure.

4. Oil Way:Parallel circuit,power beyond option.

5. Control Way:Manual control,pneumatic control,hydraulic and electric control for optional.

6. Valve construction:monoblock construction,1-7 levers.

7. Spool Function:O,Y,P.A.

8. Option;Hyoraulic lock is available on A and B port.

9. Available with manual,pneumatic control,electric and pneumatic control,hydraulic and electric control and etc.


Nom. Pressure

(MPa)

Max.Pressure

(MPa)

Nom.Flow rate

(L/min)

Max.Flow rate

(L/min)

Back Pressure

(MPa)

Hydraulic Oil

Tem.range

(℃)

Visc.range

(mm2/S)

Filtrating Accuracy

(μm)

20

31.5

40/10.57 GPM

40/10.57 GPM

≤1

-20~+80

10~400

≤10


Application

Automotive industry: Car lifts and steering systems.

Marine applications: Ship and boat steering.

Oil and gas industry: Wellhead control and drilling rigs.

Mining equipment: Conveyor belts and rock crushers.

Manufacturing processes: Injection molding machines.

Forestry equipment: Log splitters and sawmills.



PROVIDING EXCELLENT SOLUTIONS BY SAIVS™


Speak to one of our experts today to learn more about our P40,1 Spool,10.6 GPM,Hydraulic Directional Control Valves products solutions.


Request a Quote

Tags: hydraulic directional control valves monoblock directional control valves P40 hydraulic directional control valves
  • Q: Are you trading company or manufacturer?
  • A: We are factory with more than 20 years experience.
  • Q: How long for delivery?
  • A: Generally it is 15-30days as we are customized service we confirm with customer when place order.
  • Q: What is the MOQ?
  • A: It depends on what you are buying. Normally, our minimum order is one 20' full container and LCL container (less than a container load) can be acceptable.
  • Q: Can you customize my products?
  • A: Yes, we can customized products with your design drawings like DWG, DXF, DXW, IGES, STEP, PDF etc.
  • Q: What is your terms of payment?
  • A: 30% T/T in advance, balance before shipment, or as per discussion.
  • Q: What about your quality control?
  • A: 1.Checking the raw material after they reach our factory(IQC) 2. Checking the details before the production line operated.3.Have full inspection and routing inspection during mass production(IPQC) 3.Checking the goods after they are finished(FQC). 4.Checking the goods after they are finished(QC). 5.100% inspection and delivery before shipment
  • Q:What if there is a problem with the purchased product?
  • A:If any quality problem happens please take some photos and videos to show the exact problem, then our engineer will judge and give a solution.
  • Q:Do you provide OEM service?
  • A:Yes, we provide OEM service. We will produce products that meet your requirements according to the logo, product parameters and dimensions you provide. Please contact us for more details.
  • Q:Can I be an agent for SAIVS products?
  • A:Of course, please contact us for more details.
