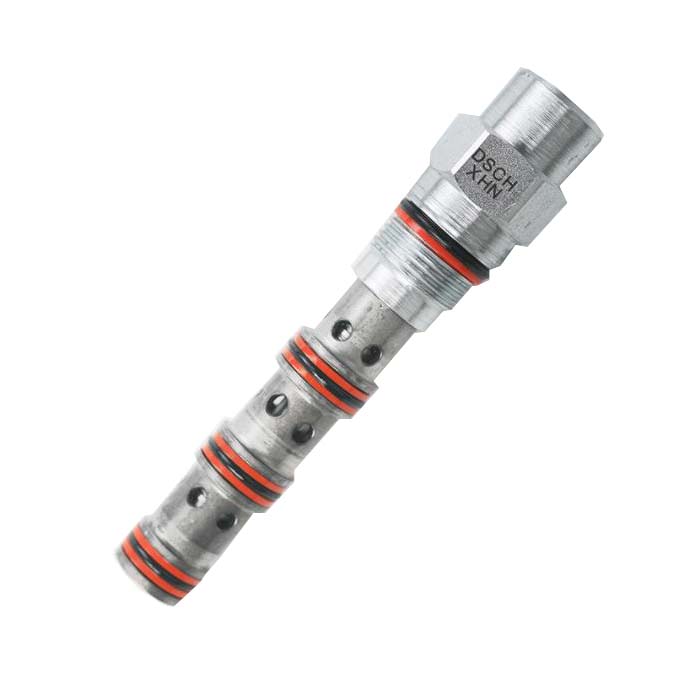

SUN DSCHXHN hydraulics cartridge valve

5out of5based on1 reviews | Write a review

CavityT-31A

Series1

Capacity10 gpm

Maximum Operating Pressure5000 psi

Pilot Flow23 in³/min.

Valve Hex Size7/8 in.

Valve Installation Torque30 - 35 lbf f

Sample:Contact us for free samples

offers original and replacement SUN DSCHXHN hydraulics cartridge valve for our customers. We will save customer costs, increase productivity and profit margins, Welcome to Get Latest Price now!

CavityT-31A

Series1

Capacity10 gpm

Maximum Operating Pressure5000 psi

Pilot Flow23 in³/min.

Valve Hex Size7/8 in.

Valve Installation Torque30 - 35 lbf ft

Model Weight0.37 lb.

Low-side (hot oil) shuttle cartridges allow hot oil to be diverted from the low pressure side of a closed loop system. When both work ports (ports 2 and 4) are at equal pressures the valve is spring-centered to an all-ports-blocked position. When one of the work ports (port 2 or 4) sees a higher pressure the opposite work port is connected to the common port (port 3).



The spool incorporates a hydraulic stop that eliminates mechanical impact and therefore the potential for internal damage.

The hydraulic stop results in a small pilot flow from the high side work port (port 2 or 4) to the common port (port 3).

A unique feature due to the hydraulic stop is that the hot oil relief setting can be confirmed with the transmission in neutral.

NOTE: Low shift values can potentially result in charge pump pressure alone inadvertently shifting the valve. Use care when selecting shift pressure.

Although this valve goes into a 4-port cavity, the nose (port 1) is not used.

Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
