BDL40,1 Spool,10.6 GPM,Hydraulic Directional Control Valves-Directional Control Valves-SAIVS

BDL40,1 Spool,10.6 GPM,Hydraulic Directional Control Valves

Function:Directional Control Valve

Spools range:1 spool

Nom.Pressure(MPa):16

Max.Pressure(MPa):25

Nom.Flow rate(L/min):40/10.57 GPM

Back Pressure(MPa): ≤1

Material:Casting Iron

Warranty:1 Year

Drive:Hydraulic

Place of Origin:Ningbo,ZheJiang

Customized support:OEM,ODM

Feature

1.Monoblock types with 2 working section

Sample:Contact us for free samples

offers original and replacement BDL40,1 Spool,10.6 GPM,Hydraulic Directional Control Valves for our customers. We will save customer costs, increase productivity and profit margins, Welcome to Get Latest Price now!

Function:Directional Control Valve

Spools range:1 spool

Nom.Pressure(MPa):16

Max.Pressure(MPa):25

Nom.Flow rate(L/min):40/10.57 GPM

Back Pressure(MPa): ≤1

Material:Casting Iron

Warranty:1 Year

Drive:Hydraulic

Place of Origin:Ningbo,ZheJiang

Customized support:OEM,ODM

Feature

1.Monoblock types with 2 working section

2.Flow 100-120 l/min with nominal pressure 160bar, max pressure up to 315bar

3.Spring side control options: T (spring return) and W (detent control)

4.Joining port: L (screw connection)

5.Parallel circuit

6.Spool function: O, P. Y, A

7.Nominal diameter: G1/2, G3/4,G1, SAE10, SAE12

8.Lever side control: manual

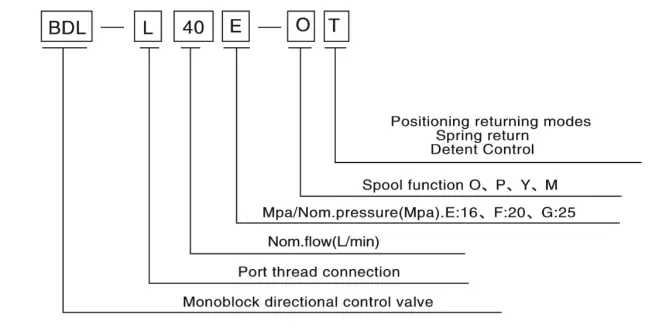

Model Code

Mode Code For BDL40 Monoblock Directional Control Valves

Exterior Size Chart for BDL40, Hydraulic Directional Control Valves

Nom.Pressure

（MPa）

Max.Pressure

（MPa）

Nom.Flow rate

（L/min）

Back Pressure

（MPa）

Hydraulic Oil

Tem.rang

（℃）

Visc.rang

（mm2/S）

Filtrating Accuracy

（μm）

40/10.57 GPM

≤1

-20～+80

10～400

≤10

Application

Robotics: Robot arm and motion control.

Material testing machines: Hydraulic test rigs.

Hydraulic presses: For forming and shaping materials.

Power generation: Hydroelectric dam control.

Railway systems: Train brake and suspension systems.

PROVIDING EXCELLENT SOLUTIONS BY SAIVS™

Speak to one of our experts today to learn more about our BDL40,1 Spool,10.6 GPM,Hydraulic Directional Control Valves products solutions.

Request a Quote
