Description:
SAIVS provides a full range of bolting product line to complete a variety of applications throughout many industries.
From simple pipe alignment to complex joint positioning of large structural assemblies, our comprehensive line of joint assembly products range from hydraulic and mechanical alignment tools to PLC-controlled multi-point positioning systems.
SAIVS offers a variety of controlled tightening tools to implement your application, ranging from manual torque multipliers, to pneumatic and electric torque wrenches, as well as a comprehensive range of hydraulic torque wrenches and interconnectable bolt tensioning tools.SAIVS also provides Hydraulic Nut Splitters and a variety of mechanical and hydraulic spreading tools for joint separation operations.
SAIVS offers a diverse range of high-quality bolting solutions for various industries,
including torque wrenches, adapters, sockets, impact tools, and more.
With specifications available in both imperial (foot-pounds, inches) and metric (millimeters),
our products cater to different measurement systems, providing flexibility and compatibility for a wide range of applications.
Our products are available in both imperial and metric specifications, ensuring compatibility across different measurement systems.
From simple pipe alignment to complex joint positioning, our joint assembly products,
including hydraulic and mechanical alignment tools, guarantee seamless operation.
Our controlled tightening tools, ranging from manual torque multipliers to Hydraulic Torque Wrenches,
provide users with versatility and precision in tightening operations.
Application:
Offshore oil and gas platforms: Used for tightening critical connections in offshore installations.
Mining industry: Used for tightening mining equipment and infrastructure.
Aircraft maintenance: Used for tightening aircraft parts and structures.
Manufacturing assembly lines: Used for torque-controlled assembly of products.
Chemical plants: Used for tightening valves, pumps, and pressure vessels.
Bridge construction: Used for tightening bridge structures and bolt connections.

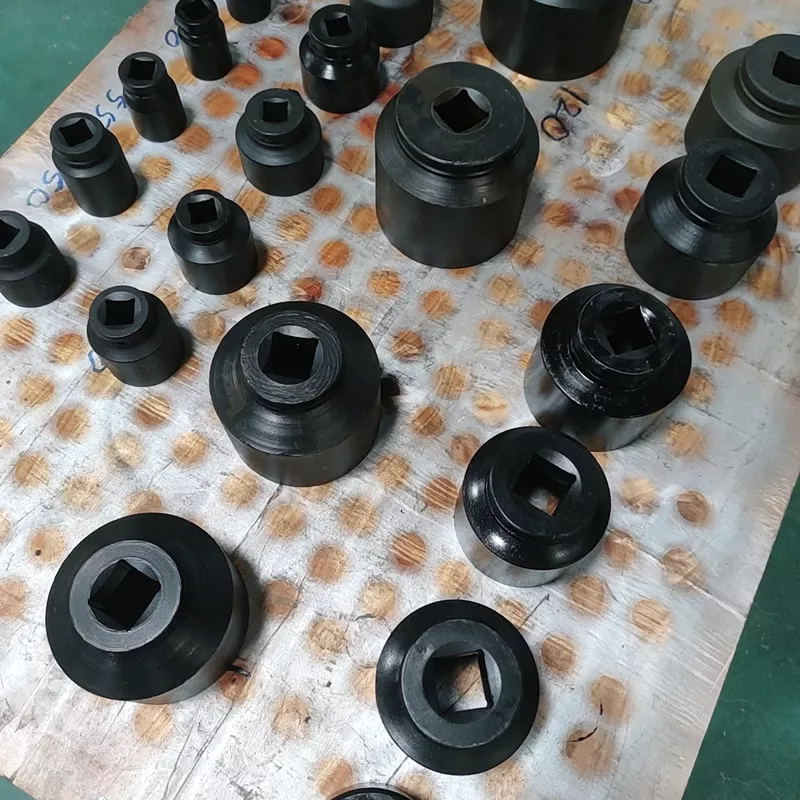

Image Gallery:
Dimensions:
3/4" Suqare Drive (SDW1) |
| 1" Suqare Drive (SDW2) |
Socket Model | Bolt Type | Hexagon(AF) | L1 | L2 | D1 | D2 |
| Socket Model | Bolt Type | Hexagon(AF) | L1 | L2 | D1 | D2 |
mm | mm | mm | mm |
SD01001 | M16 | 24 | 54 | 32 | 40 | 40 | SD02001 | M20 | 30 | 59 | 32 | 54 | 54 |
SD01002 | M18 | 27 | 54 | 32 | 42 | 42 | SD02002 | M22 | 34 | 59 | 32 | 58 | 58 |
SD01003 | M20 | 30 | 54 | 33 | 46 | 44 | SD02003 | M24 | 36 | 62 | 32 | 59 | 59 |
SD01004 | M22 | 34 | 54 | 32 | 48 | 44 | SD02004 | M27 | 41 | 65 | 38 | 67 | 54 |
SD01005 | M24 | 36 | 57 | 32 | 53 | 44 | SD02005 | M30 | 46 | 65 | 38 | 74 | 54 |
SD01006 | M27 | 41 | 58 | 33 | 60 | 44 | SD02006 | M33 | 50 | 70 | 43 | 79 | 60 |
SD01007 | M30 | 46 | 63 | 38 | 66 | 44 | SD02007 | M36 | 55 | 80 | 52 | 84 | 60 |
SD01008 | M33 | 50 | 65 | 40 | 71 | 44 | SD02008 | M39 | 60 | 85 | 57 | 89 | 60 |
SD01009 | M36 | 55 | 70 | 45 | 77 | 54 | SD02009 | M42 | 65 | 85 | 58 | 98 | 70 |
|
|
|
|
|
|
| SD02010 | M45 | 70 | 90 | 62 | 104 | 70 |
|
|
|
|
|
|
| SD02011 | M48 | 75 | 95 | 65 | 108 | 70 |
11/2" Suqare Drive (SDW3, SDW4, SDW5) |
| 21/2"Suqare Drive (SDW6, SDW7, SDW8) |
Socket Model | Bolt Type | Hexagon(AF) | L1 | L2 | D1 | D2 | Socket Model | Bolt Type | Hexagon(AF) | L1 | L2 | D1 | D2 |
mm | mm | mm | mm |
SD03002 | M27 | 41 | 85 | 44 | 74 | 74 | SD04003 | M42 | 65 | 100 | 52 | 119 | 119 |
SD03003 | M30 | 46 | 85 | 44 | 74 | 74 | SD04004 | M45 | 70 | 120 | 67 | 128 | 128 |
SD03004 | M33 | 50 | 90 | 45 | 79 | 79 | SD04005 | M48 | 75 | 120 | 67 | 128 | 128 |
SD03005 | M36 | 55 | 90 | 45 | 84 | 84 | SD04006 | M52 | 80 | 130 | 71 | 128 | 128 |
SD03006 | M39 | 60 | 100 | 45 | 94 | 94 | SD04007 | M56 | 85 | 130 | 71 | 129 | 129 |
SD03007 | M42 | 65 | 100 | 45 | 98 | 80 | SD04008 | M60 | 90 | 140 | 73 | 139 | 139 |
SD03008 | M45 | 70 | 105 | 50 | 104 | 80 | SD04009 | M64 | 95 | 140 | 73 | 139 | 139 |
SD03009 | M48 | 75 | 110 | 50 | 118 | 85 | SD04010 | M68 | 100 | 140 | 81 | 148 | 130 |
SD03010 | M52 | 80 | 115 | 55 | 118 | 90 | SD04011 | M72 | 105 | 150 | 89 | 149 | 130 |
SD03011 | M56 | 85 | 125 | 60 | 128 | 90 | SD04012 | M76 | 110 | 150 | 90 | 158 | 130 |
SD03012 | M60 | 90 | 125 | 60 | 139 | 90 | SD04013 | M80 | 115 | 150 | 98 | 168 | 130 |
SD03013 | M64 | 95 | 130 | 65 | 139 | 90 | SD04014 | M85 | 120 | 150 | 98 | 178 | 130 |
SD03014 | M68 | 100 | 135 | 70 | 144 | 90 | SD04015 | M90 | 130 | 170 | 98 | 188 | 130 |
SD03015 | M72 | 105 | 135 | 70 | 149 | 90 | SD04016 | M95 | 135 | 170 | 114 | 198 | 130 |
SD03016 | M76 | 110 | 135 | 70 | 158 | 90 | SD04017 | M100 | 145 | 170 | 122 | 210 | 152 |
SD03017 | M80 | 115 | 135 | 70 | 159 | 90 | SD04018 | M105 | 150 | 190 | 140 | 216 | 152 |
SD03018 | M85 | 120 | 135 | 70 | 168 | 95 | SD04019 | M110 | 155 | 190 | 140 | 229 | 152 |
SD03019 | M90 | 130 | 155 | 93 | 189 | 95 | SD04020 | M115 | 165 | 190 | 140 | 241 | 152 |
